Binary Tree Diagrams

Binary trees are one of the most common hierarchical structures, and this module provides a specialized pair of classes — BinaryNodeObject and BinaryTreeDiagram — designed to make creating, linking, and laying out binary trees convenient and safe.

BinaryNodeObject enforces the strict "at most two children" rule and exposes intuitive left and right properties. BinaryTreeDiagram extends TreeDiagram with binary-friendly defaults and helper methods.

Create a Binary Tree

To get started, import the binary tree types and create a BinaryTreeDiagram:

from drawpyo.diagram_types import BinaryTreeDiagram

tree = BinaryTreeDiagram(
    file_path="path/to/diagram",
    file_name="Binary Tree.drawio",
)

There are a number of configuration parameters available to fine tune the layout of the BinaryTreeDiagram:

Parameter	Effect	Default
level_spacing	Vertical spacing between levels	80
item_spacing	Horizontal spacing between sibling groups	20
group_spacing	Spacing between unrelated groups	30
link_style	Edge connection style	"straight"
padding	Spacing between objects within a group	10

Add Nodes

Binary trees use BinaryNodeObject, a subclass of NodeObject that provides two dedicated child slots: left and right.

from drawpyo.diagram_types import BinaryNodeObject

root = BinaryNodeObject(tree=tree, value="Root")
left = BinaryNodeObject(tree=tree, value="Left Branch")
right = BinaryNodeObject(tree=tree, value="Right Branch")

Using the `left` and `right` setters

Every BinaryNodeObject has:

exactly two child slots, always present
direct accessors: node.left and node.right

Assign children:

root.left = left
root.right = right

Changing a child's side automatically fixes its parent relationship:

root.left = right     # reassigns and detaches from old parent

Setting a side to None removes the child:

root.right = None

Using BinaryTreeDiagram convenience methods

BinaryTreeDiagram provides small helpers to ensure consistency and type safety:

tree.add_left(root, left)
tree.add_right(root, right)

Both methods:

ensure parent and child are BinaryNodeObjects
automatically register both under the same BinaryTreeDiagram

Rules and Guarantees

BinaryNodeObject enforces strict binary-tree behavior.

Child Slot Normalization

Nodes always maintain exactly two slots:

[left, right]

If you supply fewer than two children on creation:

node = BinaryNodeObject(tree_children=[child])

…it becomes:

[child, None]

If you supply more than two:

BinaryNodeObject(tree_children=[a, b, c])

→ Raises ValueError.

Moving Nodes Between Parents

Assigning a node as a child:

detaches it from any existing parent
prevents a node from occupying both sides at once
prevents more than two unique children

Parent Safety

BinaryTreeDiagram forbids attaching non-binary nodes:

tree.add_left(parent, not_a_binary_node)

→ Raises TypeError.

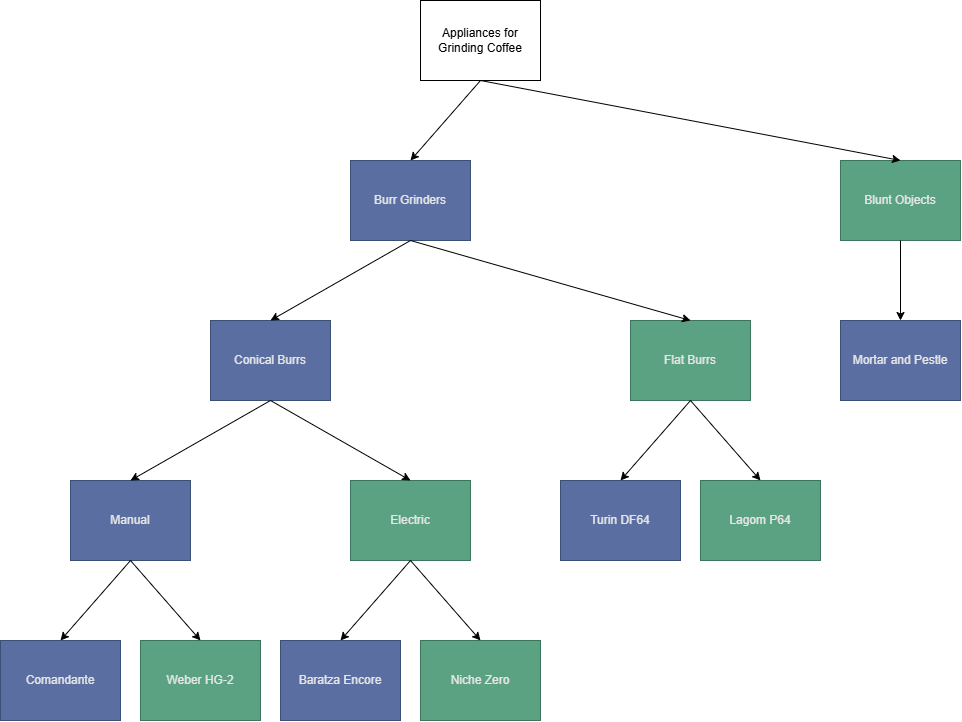

The resulting diagram looks something like this:

coffee_grinders_binary_tree

Create a Binary Tree from a Dictionary

BinaryTreeDiagram supports creating an entire binary tree structure directly from a nested dictionary or list. This allows you to generate binary trees programmatically without manually creating every BinaryNodeObject.

Rules for dict/list conversion

Input Type	Behavior
Dict	Each key becomes a category node, and its value is recursively processed as its children.
List / Tuple	Each element becomes a sibling under the same parent.
Scalar (`str`, `int`, `float`)	Treated as a leaf node.
Unsupported types	Raises a `TypeError`.

Coloring Nodes

You can control node colors using the colors list and coloring mode.

Parameter	Description	Options / Default
`colors`	List of `ColorScheme`, `StandardColor`, or color hex strings.	Default: `None`
`coloring`	Method used to assign colors to nodes.	`"depth"` (default), `"hash"`, `"type"`, `"directional"`

Coloring Modes

Mode	Description
`depth`	Colors nodes based on their depth in the tree.
`hash`	Colors nodes based on a hash of their value (stable across runs).
`type`	Colors nodes based on node type: category, list item, or leaf.
`directional`	Colors based on direction i.e, one color for left direction and one color for right direction.

Full Example

from drawpyo.diagram_types import BinaryTreeDiagram, BinaryNodeObject

# Create the diagram
tree = BinaryTreeDiagram(
    file_path="~/Binary Trees",
    file_name="SimpleBinary.drawio"
)

# Root
root = BinaryNodeObject(tree=tree, value="Root Node")

# Children
a = BinaryNodeObject(tree=tree, value="Left Child")
b = BinaryNodeObject(tree=tree, value="Right Child")

# Attach via setters
root.left = a
root.right = b

# Further branching
a.left  = BinaryNodeObject(tree=tree, value="A1")
a.right = BinaryNodeObject(tree=tree, value="A2")
b.left  = BinaryNodeObject(tree=tree, value="B1")

tree.auto_layout()

tree = BinaryTreeDiagram.from_dict(
    data,
    file_path= "~/Test Drawpyo Charts",
    file_name="Minimal Binary Tree.drawio",
    direction="down",
    colors=["#DDDDDD","#BBBBBB"],
    coloring="directional",
)

tree.write()
