Pie Charts

A pie chart is a circular visualization that divides a whole into proportional slices. The PieChart module provides a configurable way to render labeled pie slices from a dictionary mapping strings to numerical values.

Create a simple Pie Chart

Start by preparing the data and any optional formatting before initializing a chart.

# Define the chart title
chart_title = "Coffee Orders"

# Define the pie chart data
coffee_orders = {
    "Americano": 64,
    "Espresso": 21,
    "Latte": 15,
}

# Custom formatter to override slice labels
def label_formatter(category: str, value: float, total: float) -> str:
    return f"{category}: {value/total*100:.1f}%"

# Create the chart object
chart = PieChart(
    coffee_orders,
    title=chart_title,
    size=250,
    label_formatter=label_formatter,
)

Just like with the Bar Chart module, the PieChart constructor accepts a variety of keyword arguments to adjust appearance, layout, and textual formatting.

Parameter	Effect	Default
position	Top-left position where the chart is placed as (x, y)	(0, 0)
size	Diameter of the pie	200
slice_colors	List of colors or ColorSchemes for slice fills	["#66ccff"]
title	Optional chart title	None
title_text_format	Formatting for the title (alignment, font, size, etc.)	TextFormat()
label_text_format	Formatting applied to slice labels	TextFormat()
background_color	Optional background rectangle behind the pie	None
label_formatter	Callable formatting each slice’s label as (label, value, total)	default_label_formatter

Label Formatting

Each slice automatically receives a label positioned along its radius. The default format produces percentage values:

"{label}: {percentage:.1f}%"

You may fully override this via the label_formatter callback.

Slice Colors

The list passed to slice_colors is cycled if fewer entries are provided than slices. Colors may be strings, StandardColor, or ColorScheme objects.

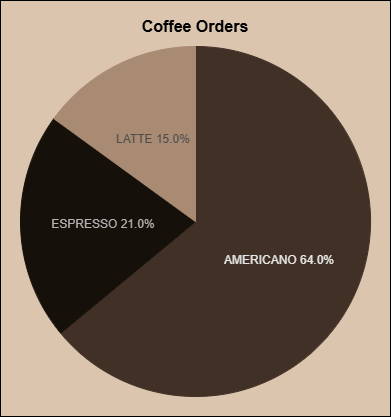

Example Chart

With additional formatting and color schemes, you can create a custom-styled chart:

chart = PieChart(
    coffee_orders,
    position=(100, 0),
    size=350,
    slice_colors=slice_colors,  # list of custom ColorScheme objects
    title=chart_title,
    title_text_format=title_format,
    label_formatter=label_formatter,
    background_color="#DBC5AF",
)

After optional customization, add the chart to a Page and save the .drawio file.
